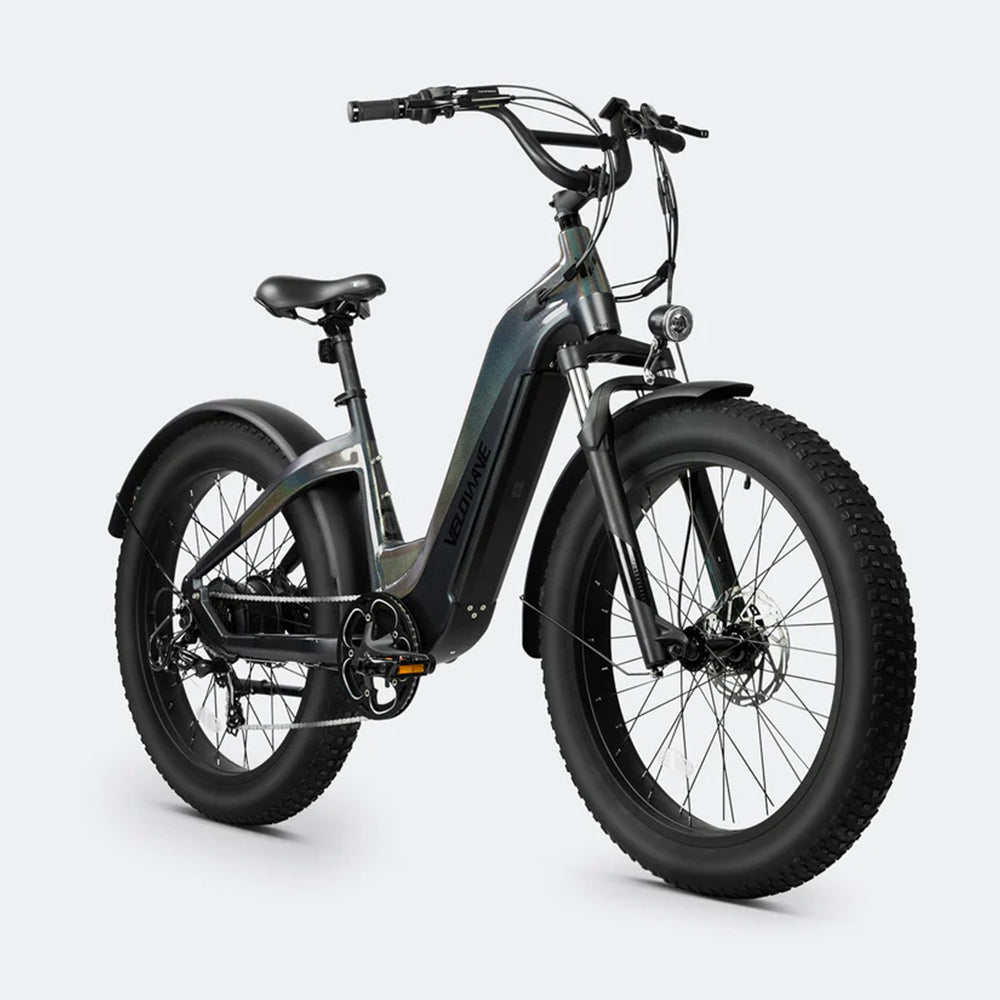

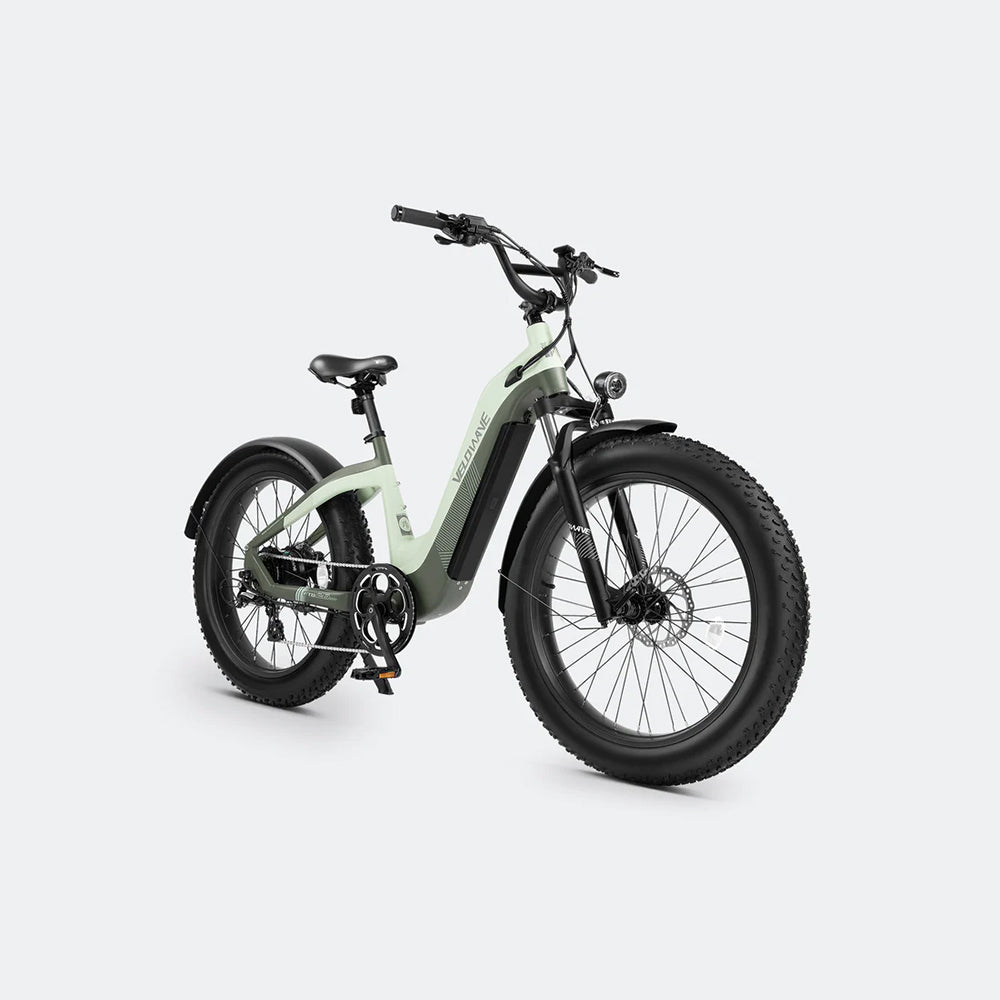

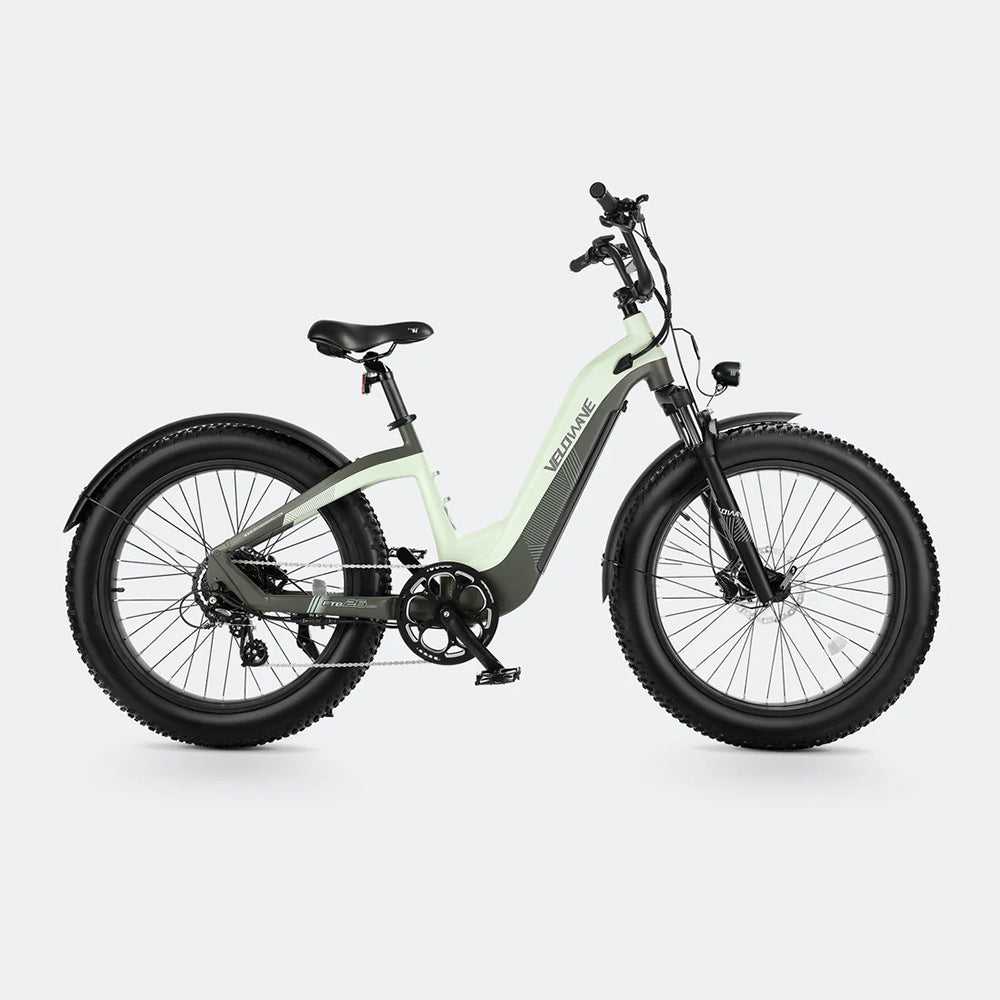

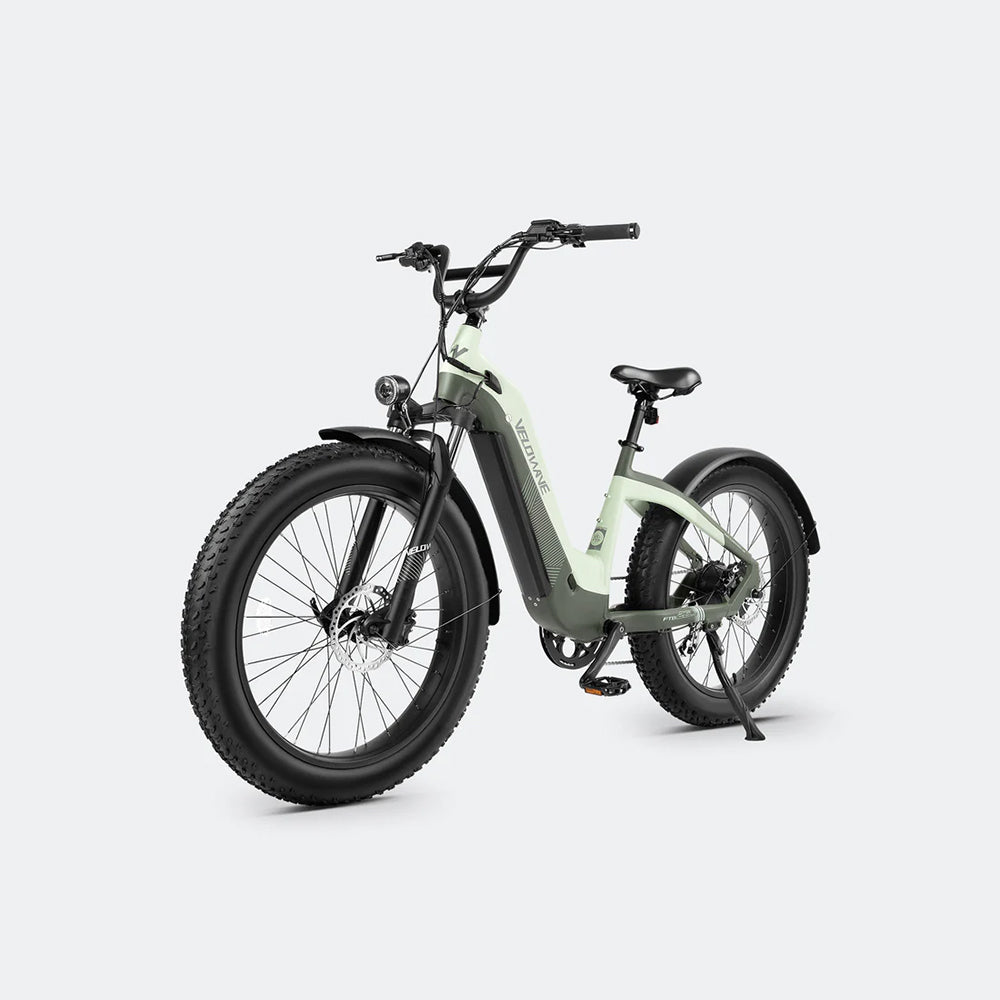

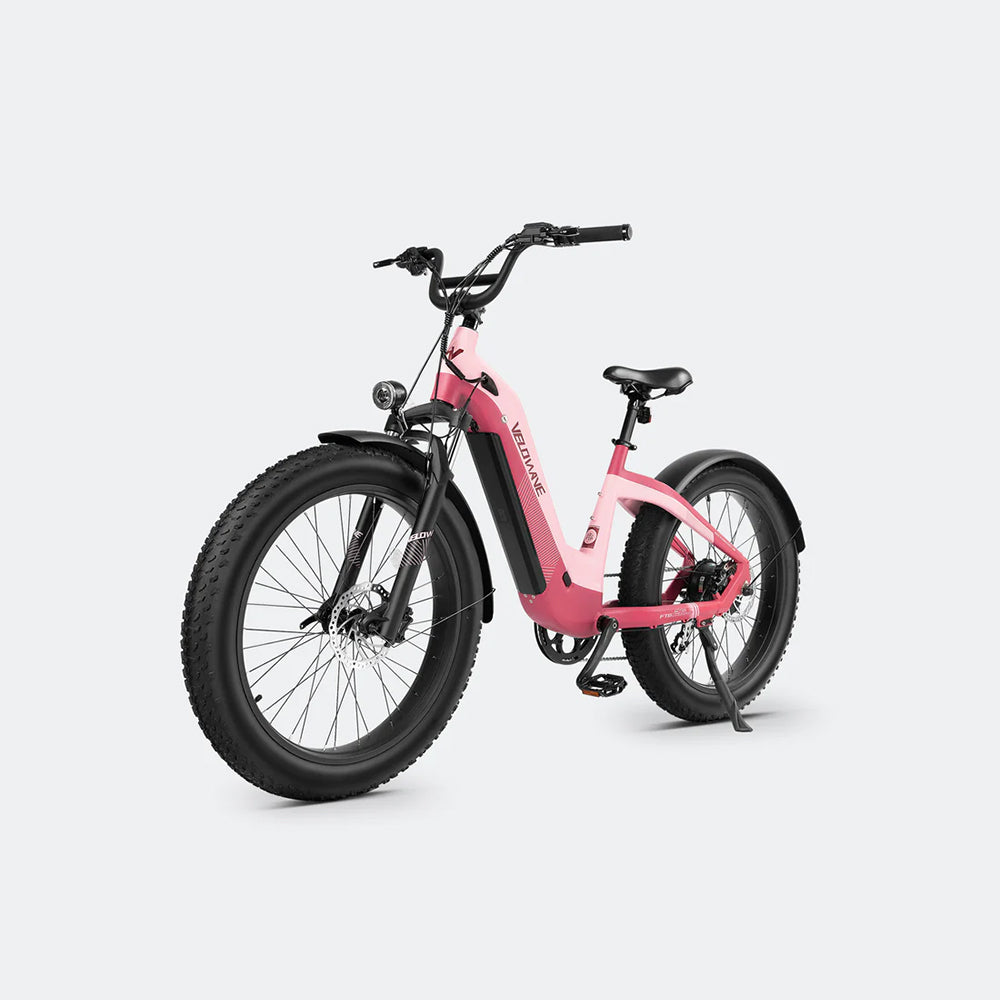

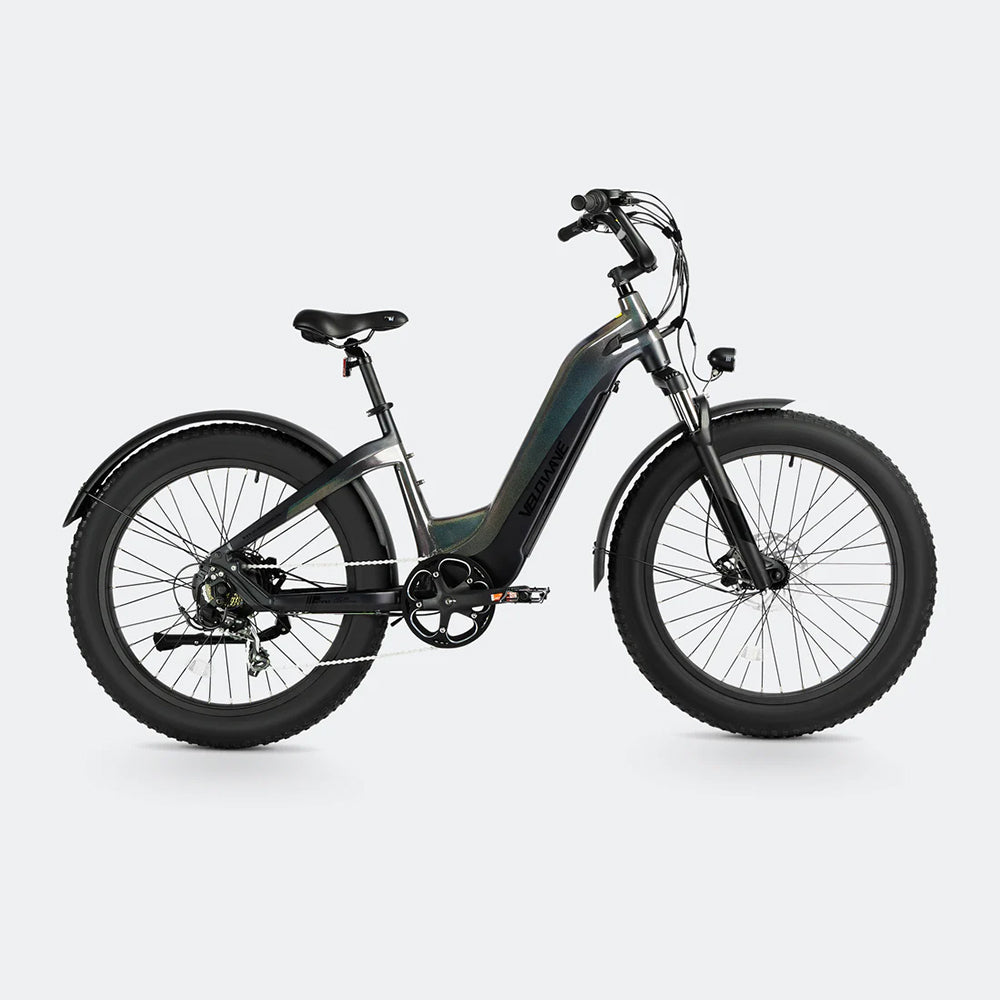

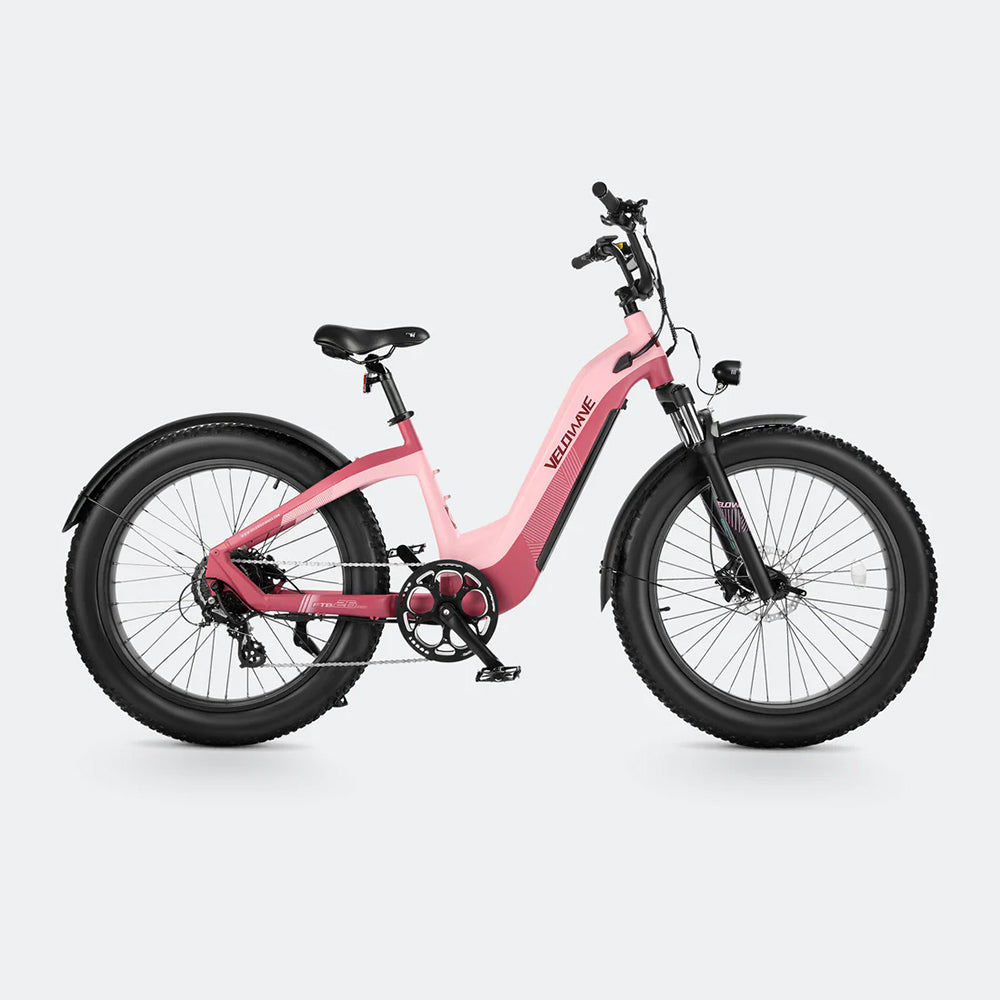

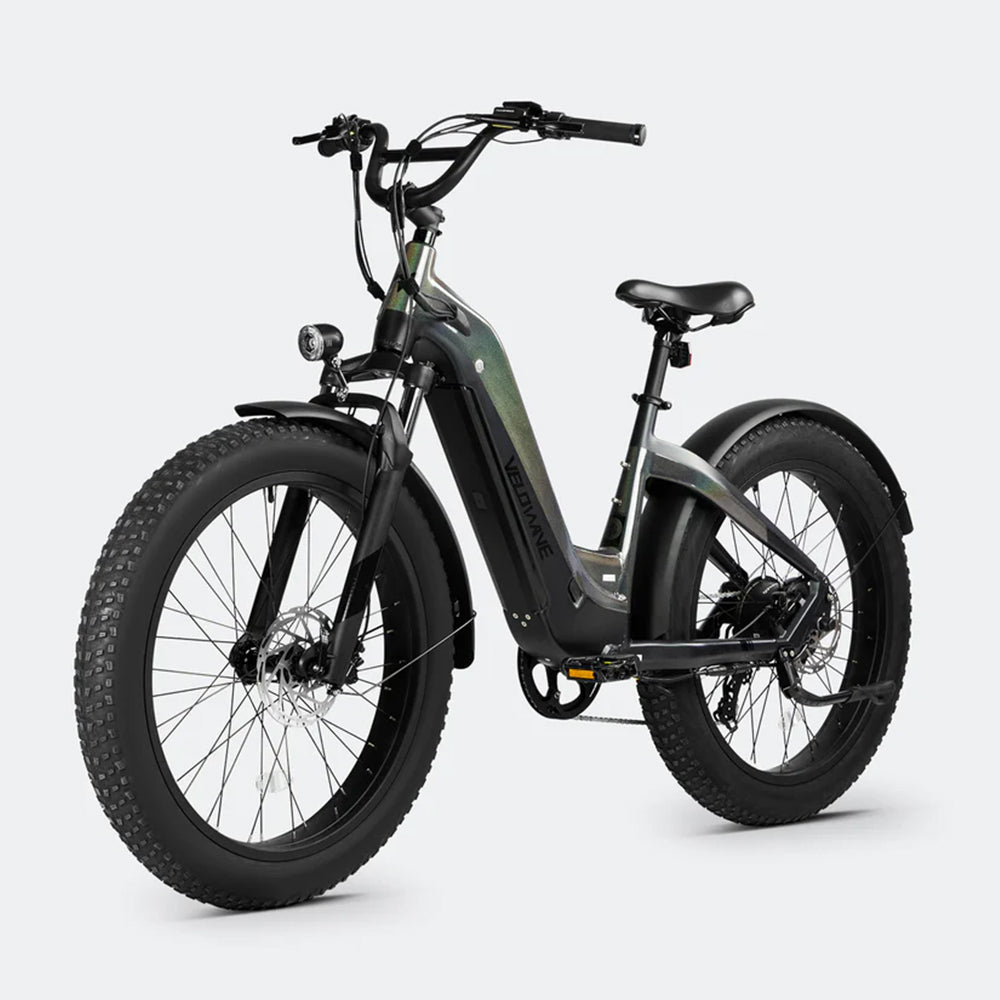

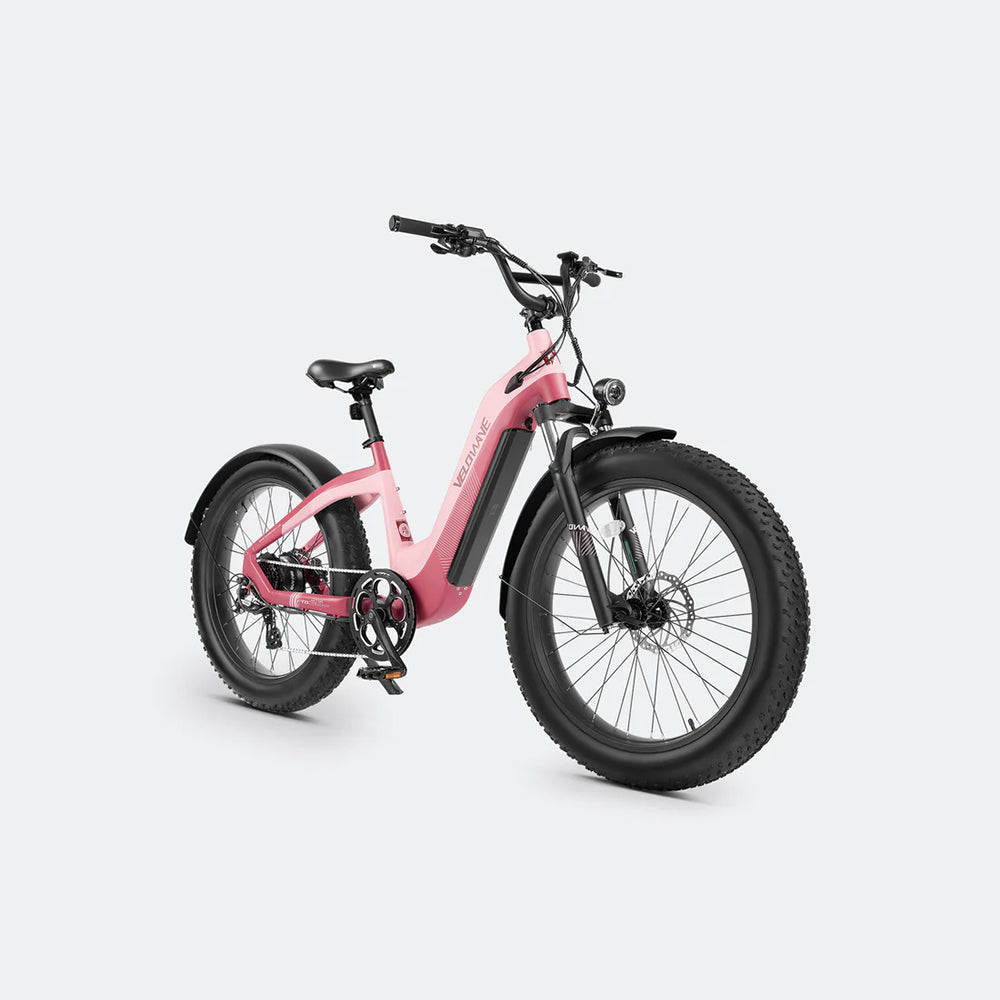

Grace 2.0 Step-Thru Electric Bike

• Handlebar Height - 1230mm
• Reach - 420mm
• Head Tube Length - 175mm
• Seat Tube Length - 457mm
• Standover Height - 375mm
• Wheelbase - 1205mm
• Total Length - 1940mm
• Seat Height Min/Max - 880/1060mm

General

• Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
• Max Speed: 28MPH by pedal, 20MPH by throttle
• Range: Up to 120 Miles by Pedal; 56+ Mile by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)

Frameset

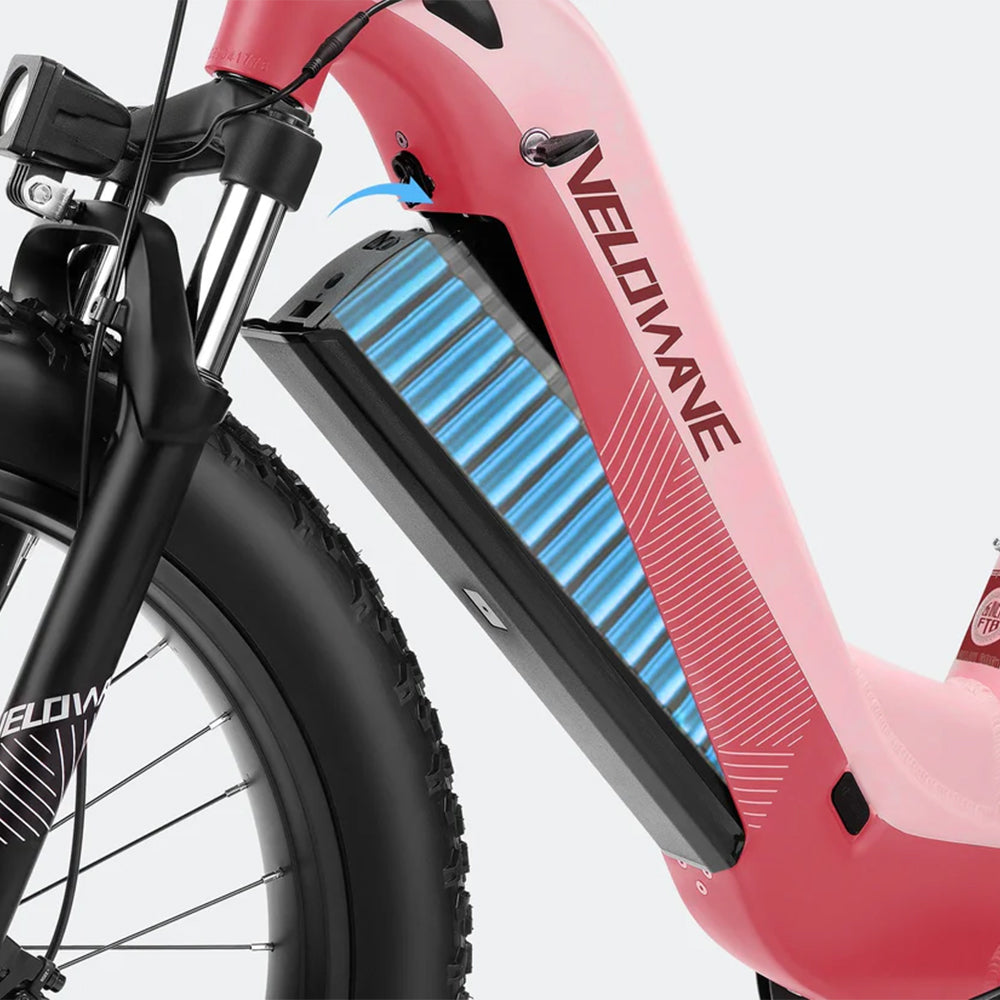

• Frame: 6061 Aluminium, Removable Battery, Internal Routing
• Fork: Hydralic Suspension Fork

Wheels

• Rim Material: Aluminum
• Rim Size: 26 x 3.0
• Front Wheel Spokes: 13K x 243
• Rear Wheel Spokes: 12K x 198
• Tire: CST Fat Tires
• Tire Size: 26" x 4.0"

E-system

• Battery:48V 20Ah, 960Wh, LG 21700 Cells
• Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED

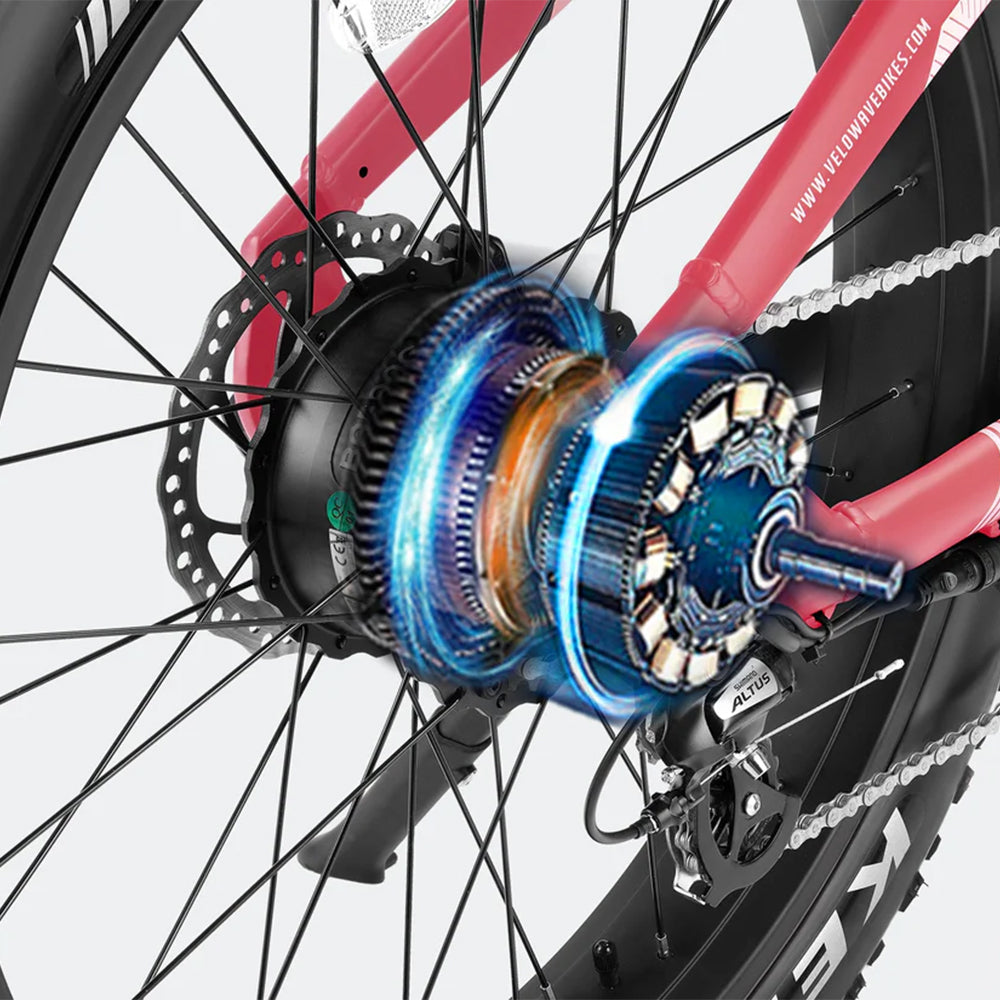

• Motor:BAFANG Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
• Controller: 48V 25A Peak

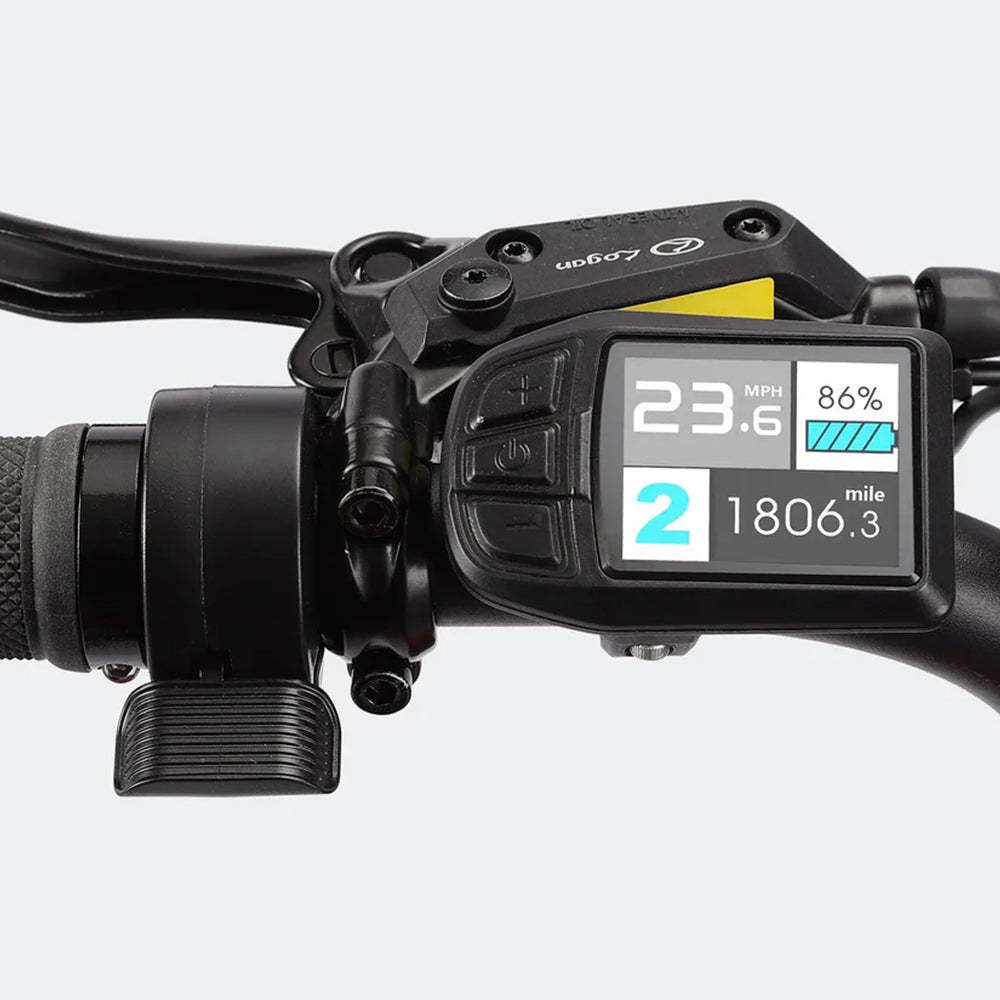

• Display: Multifunctional Color-Screen Display
• Pedal Assist:Torque Sensor
• Throttle: Thumb Throttle
• Front Light: 48V 10W LED Light

Drivetrain

• Shifter: Shimano, 7-Speed
• Rear Derailleur: Shimano, Long Cage
• Crank & Chainring: 52T, 170mm Alloy Crank
• Freewheel: 7-Speed
• Pedal: Alloy Platform Pedals

Components

• Saddle: Comfortable Wide Saddle
• Handlebar:Alloy, 750mm width
• Grips: Nylon Lock-on
• Brake: Front & Rear Hydralic Disc Brakes
• Brake rotor: 180mm, 1.9mm thick
• Kickstand: Side Kickstand
• Seatpost:Forged Alloy, ∅30.4*350mm
• Stem:Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: 0°
• Handlebar:Aluminum Ø31.8mm, Width 730mm

Weight

• Net Weight:38.5kg
• Gross Weight:50.5kg
• Battery Weight:5.15kg
• Weight limit:150kg(330lb) Payload Capacity

Size

• Product Size:2100x690x1158mm
• Packing Size:1590x330x880mm
